Upgrade kit Wireless Control

€ 624,00

incl. 20 % VAT

Shipping costs:

Germany

Austria

other countries

free

list

delivery time 1-3 days

Upgrade kit Wireless Control

Art. No. AWF01

0.0 of 5 stars

Wireless control of the scale via remote control on vehicles • Log in to the scale wirelessly • Transmit vehicle data and other master data to the scale and assign it to the weighing process • Fully automatic scale operation without operator intervention or post-processing

more details

Product Description

Automatic weighing without tare weighing

When logging into the scale with a wireless remote control, the vehicle is assigned to the weighing process along with its stored tare weight. The weighing process is then automatically completed, and the load is calculated by subtracting the stored tare weight from the full weighing result.

Predefined information

The software allows the assignment of vehicles, articles, suppliers/customers, fields, and other classifications to each wireless remote control. This assignment can also be key-specific. For special applications, the 12-button remote control allows numerical input for a criterion. All information is automatically assigned to the weighing process, eliminating the need for post-processing.

Scale activation for authorized users only

You can configure the scale to allow weighing only when logging in with a wireless remote control. This prevents unauthorized persons from performing weighing operations.

Technical Data

Device Data:

• Enclosure with cable glands
• Housing dimensions: 94 x 94 x 57 mm (W x H x D)
• Operating temperature: -25 to +70 °C
• Ground plane antenna
• Range up to 300 m
• Frequency: 433 MHz
• Power supply: 230 V
• RS-232 interface

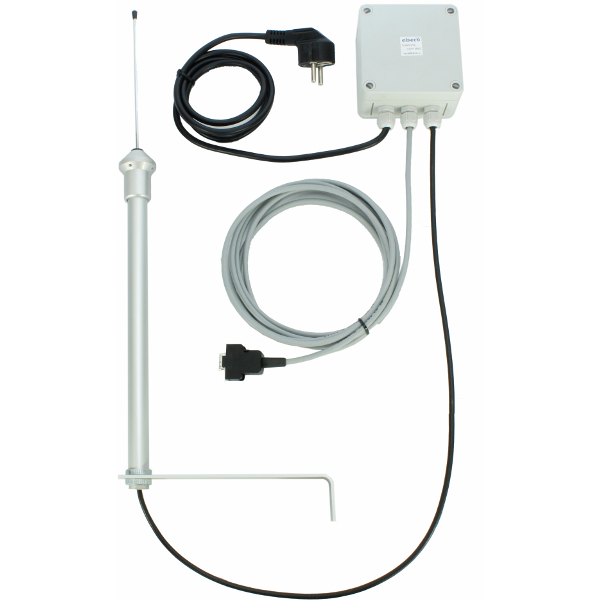

Scope of Delivery

Scope of Delivery:

• 1 wireless receiver in a waterproof housing
• 1 antenna with mounting bracket
• 1.5 m power supply cable
• 1 USB/RS232 converter
Signal cable from the wireless receiver to the PC must be ordered separately in the required length!

FAQ

Where should the wireless receiver and antenna be positioned?

The housing with the wireless receiver and the antenna should be mounted outdoors, positioned next to each other. The exact location is not crucial. In practice, it has proven effective to install them near the large display.

How long can the cable connection to the PC be?

The serial data cable can be up to 100 m long. Please specify the required cable length when ordering.

When is the 2-button remote control used?

In most cases, it is used for vehicle identification. The 2-button remote controls are sufficient for this purpose. The vehicle and its tare weight can be assigned globally to the remote control, regardless of which button is pressed. If needed, different information can be stored for each button.

When is the 12-button remote control used?

If more than two differentiation criteria are required, the 12-button remote control must be used. The software can also be configured to allow numerical input using the remote control's number pad (e.g., supplier number, field number...).

How many wireless remote controls can be used?

Up to 256 remote controls can be used, including both 2-button and 12-button models.

Can I see when a wireless remote control logs in?

Yes, the remote control number is displayed on the screen and the large display for a configurable time period.

Can the wireless remote control system be retrofitted?

The wireless remote control system can be installed at a later time. In the software, you only need to enable the setting that a wireless remote control is available.
