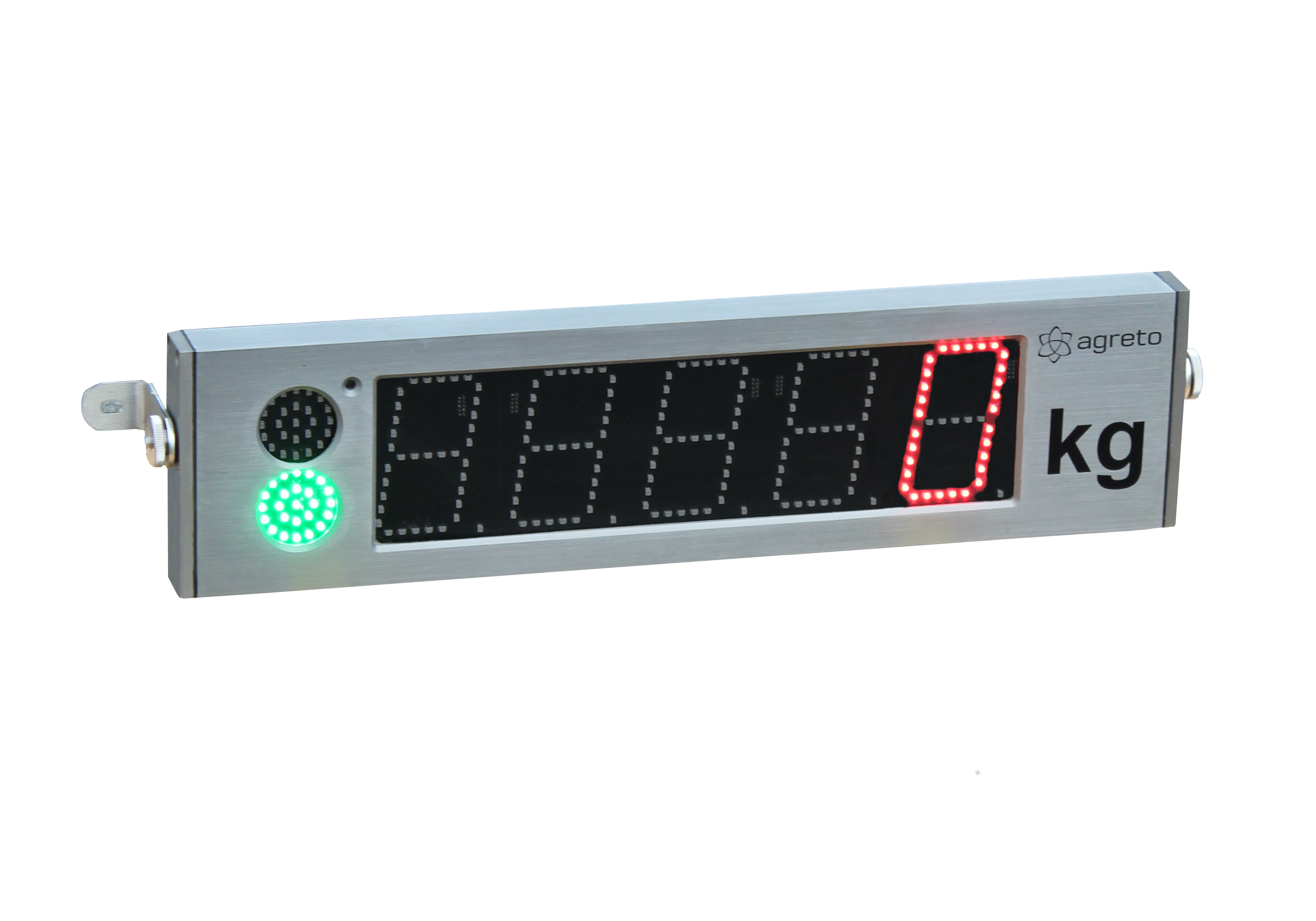

Upgrade kit large display 75 mm with traffic light

This device combines the functionality of a large display and a traffic light in one unit: reading weights and color-coded readiness indication.

The large display, with its 75 mm high, very bright LED digits, is easy to read even from a long distance (up to 100 m).

The large display also shows whether the scale is ready for weighing or if there is an error status. Additionally, it informs the driver if a completed weighing was not carried out correctly.

If you use wireless equipment, the large display shows the identification code or transmitted number when a wireless remote control is registered.

During static weighings, the large display indicates whether the position of the load on the scale is correct, ensuring that each axle is centered on the platform. This eliminates the need for getting out of the vehicle or using an assistant.

Device data:

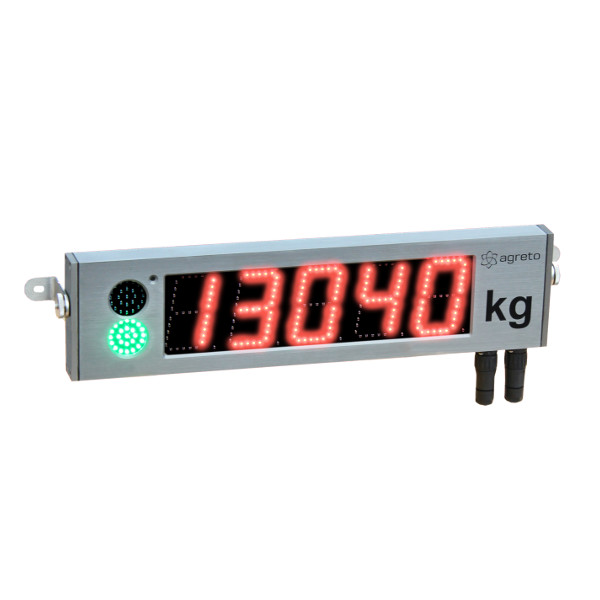

• Dimensions without mounting bracket: 480 x 150 x 80 mm (W x H x D)
• Weight 3 kg
• Waterproof aluminum housing
• Easy wall or ceiling mounting with 2 mounting brackets
• 5-digit display with 75 mm high illuminated digits
• Red and green LED field for traffic light function
• Manual or automatic brightness adjustment
• 230 V power supply
• 7-pin round plug for signal cable connection
• Serial data transmission RS232/RS485

Scope of delivery:

• 1 display unit
• 1.5 m power supply cable
• 1 USB/RS232 converter for PC connection
signal cable (please order in the required length separately)

Where should the large display be positioned?

The large display is usually positioned at a right angle to the driving direction, about 10 to 30 m to the side at the scale level. This allows the driver to see it clearly before and after weighing. If there is a main driving direction, the display should be positioned so that the driver can see it optimally after weighing. The traffic light signals should always be visible when driving onto the scale.

From what distance can the large display be read?

Readability depends on light conditions and the user’s eyesight. In practice, the display is readable from up to 100 m away.

How long can the cable connection to the PC be?

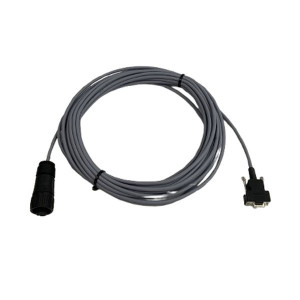

The serial data cable can be up to 100 m long. Please order the required length separately as an accessory; it is delivered with pre-mounted connectors.

How readable is the display in sunlight?

Direct sunlight may affect readability. A small roof above the display is recommended to prevent direct sunlight. If possible, place the display in a position where it is not exposed to direct sunlight.

Can the large display be retrofitted later?

The large display can be installed at a later time. In the software, the setting must be adjusted to indicate that a large display is present.

Further questions?

We are happy to answer additional questions by phone at +43 2846 620.
