Bluetooth Weighing Electronics Connection Box

With the BW1 Box, you no longer need a traditional weight display – the weight is displayed live on your phone, always at hand.

The BW1 modules support all common analog load cell types (shear beam, compression cells, S-cells, etc.) and can be universally used for various scales like platform scales, silo scales, weighing beams, hydraulic scales, etc. – independent of the manufacturer.

The intuitive app simplifies daily tasks and eliminates manual steps. Automatic summation, a special animal weighing mode for restless animals ensures efficiency, safety, and time savings in use.

Existing scales can be easily modernized. Simply connect, use the setup assistant in the app to configure the scale, and start weighing.

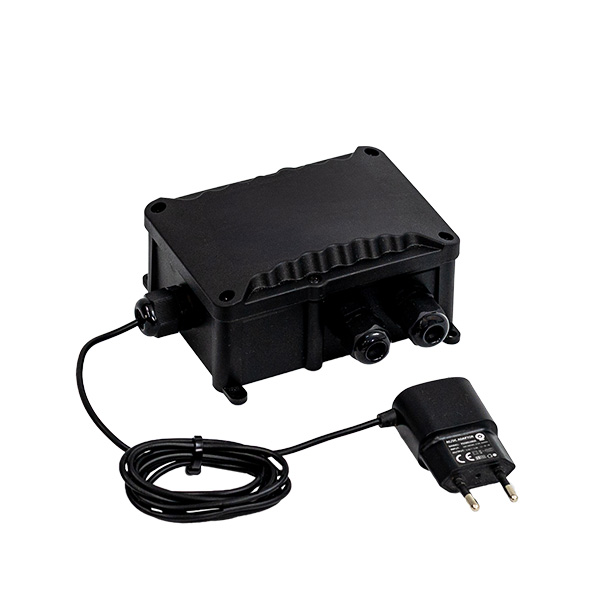

Connection box with weighing electronics:

• ABS plastic housing, waterproof according to protection class IP67
• 5 cable glands
• Spring terminals for 4 load cells and power supply
• 24-bit signal amplifier, designed for up to 6 load cells, 350 Ohm
• BLE module, range 20 to 30 meters with clear line of sight
• Dimensions including cable glands 140 x 130 x 60 mm (LxWxH)

SmartBeamPro app:

• Software for operating and evaluating the BW1 modules
• For mobile devices with Android operating system
• Replaces the traditional weight display
• Setup assistant for calibration and configuration
• Weight display
• Manual zeroing
• Automatic zeroing with adjustable range
• Manual summation
• Automatic summation with adjustable parameters
• Continuous display of the sum and number of summed weights
• Adjustable filter for stable weight display
• Animal weighing mode for weighing restless animals
• Scale characteristics adjustable depending on the weighing technology
• Rated load from 0.01 to 100,000
• Resolution/scale division from 0.001 to 100
• Units: kg, g, t, lb, gr, klb, l, ml, hl, m3
• Operating language: German
• Free installation via the Agris website

To install the SmartBeamPro app, click or scan the following QR code:

Privacy Policy for SmartBeamPro app

Scope of Delivery:

• 1 weighing electronics box
• 1 power supply
• 1 connection cable for weighing technology
• 1 app for free download
• 1 manual

Which scales/weighing technology can this Bluetooth weighing module be used with?

The BW1 modules can be used individually and independently of the manufacturer for all types of scales (weighing beams, weighing feet, platforms, silo scales, etc.), all types of analog load cells (shear force cells, compression cells, S-cells, etc.), and all types of weighing applications.

Further Questions?

Do you have any questions or need assistance with product selection? Call us at +43 2846 620 – at Agris GmbH, you’ll speak directly with experienced experts who will assist you competently and gladly.
