Scale construction kit with shearbeam loadcells

Scale construction kit with shearbeam loadcells, 4x1t

€ 582,00

incl. 20 % VAT

Shipping costs:
Germany
Austria
other countries
free
free

list


delivery time 1-3 days


  • Number / Weighing rage: 4 x 1 t



  • Indicator: no indicator





Art. No. AGWSBH1T4


0.0 of 5 stars

Scale construcion kit for individual weighing applications • robust and waterproof sharebeam loadcells • high accuracy • usable for any scale construction • Can be combinded with any weighing indicator

  more details   Downloads

Product description


Flexible use for weighing applications up to 4.000 kg with a resolution of 0,5 kg

The scale kit is diverse usable and has an excellent price-performance ratio.

Robust and waterproof

The loadcells have a breaking load of 150 percent and are completely dust and waterproof according to protection class IP68. The feet are equipped with large-sized adjustment thread.

High Accuracy

The accuracy of the loadcells is +/- 0,02 %.

Can be combined with each weighing indicator

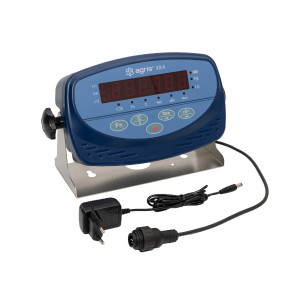

If you order one of the AGRETO weighing indicators (HD1, XK3), then you get the components fully connected and calibrated. Your weighing technology is ready for immediate use.
Technical data

Load cells:
• High-resolution shear beam load cells
• Capacity 1.000 kg
• 3 mV/V, 350 Ohm
• 120% secure overload, 150% breaking load
• +/- 0.02% accuracy
• Waterproof according to protection class IP68
• Operating temperature: -35 up to +65 °C
• Temperature compensated: -10 up to +40 °C
Junction box:
• Waterproof box
• Connecting terminals for weighing cells and weighing signal cable
• Potentiometer for corner adjustment of load cells
• Cable outlets with cable screw connections
Weighing signal cable:
• 4-pin cable 4 x 0.5 mm2
• 7.6 mm outer diameter
• Special coating
• UV-resistant
• Small bending radius
• Treadable
Scope of delivery

Scope of delivery:
• 4 loadcells
• 1 adjustable foot per loadcell
• 1 distance spacer per loadecll
• 1 junction box
• 6 m weighing signal cable
• 1 waterproof screw plug for connection to the weighing indicator
• 1 User manual
FAQ

For which weighing applications the load cell kit can be used?
The AGRETO Scales kit with shear beam load cells can be used for any scale constructions. They are ideal for animal scales, for all kinds of platforms, for installation in machines such as fertilizer spreaders, seeders, wrappers, balers, forage mixers, trailers, etc. and also for mobile scale constructions.
What do you have to pay attention to during assembly?
To get a satisfactory result, the load cells has to be mounted as horizontally as possible. With the height-adjustable feet level differences can be compensated.
How can the loadcells be attached to a platform?
The load cells including the spacer plates are bolted with two high-strength screws on the platform structure normally from bottom to top. In the area of ​​load cell mounting the scale construction must be resistant against bending and twisting. When utilizing the rated load, the material in the range of load cell mounting should have about half the thickness of the load cell itself. That is about 15 mm with a 1000 kg load cell. (see the pictures).
How can the loadcells be attached to a machine?
The load cells have two through holes on one side and a bore with a thread on the other side. The load cell must be mounted in that way, that the cell rests only in the region of the attachments to the structure and the entire load is transferred through the load cell. On the side with the two holes, the spacer plate can be used. On the side with the thread, a disc should be placed. To avoid tensions it is advisable to only tighten one cell and carry out the other fixtures floating. This is best done with a screw and a lock nut on the threaded side of the cell (-> see the pictures).
How long can the distance between two loadcells be?
The distance between the loadcells is only limited with the length of the cables.
Any more questions?
Please call us: +43 2846 620.
