PTO rpm meter / hour counter for power take-off
EUR
336.00
€ 336,00
incl. 20 % VAT
Shipping costs:
|
Germany
Austria
other countries
|
free
free
|
delivery time 1-3 days
Art. No. EMRC01

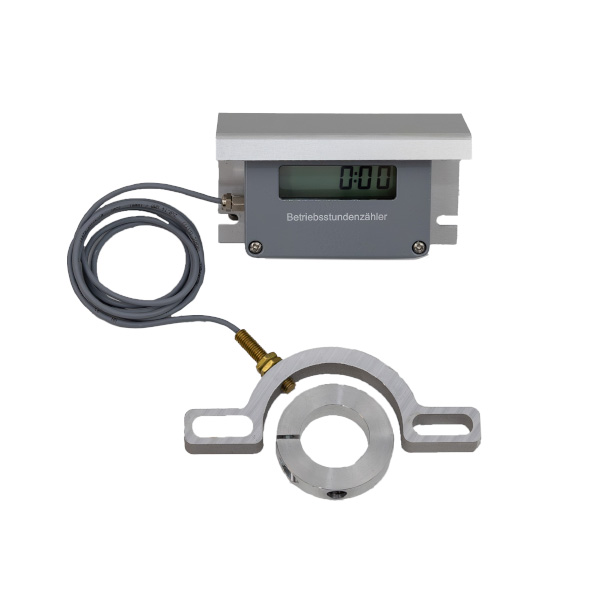

PTO rpm meter and hour counter for machines with power take-off / cardan shaft • ideal for shared machinery and machine rental • shows operating hours when stationary and rotational speed (revolutions per minute) when in motion • including sensor mount and ring with integrated magnet for standard PTO stub 1-3/8 inch
Product description
Objective billing basis according to actual operating time
The device records the operating hours when the power take-off shaft is rotating. Only the hours that are actually relevant for job-based billing are counted.
Speed monitoring
The device can also be used to check or adjust a specific rotational speed.
Compatible with all powered machines with power take-off
The counter can be operated on any machine equipped with a PTO shaft. The sensor requires a magnet to trigger, which is mounted directly in the sender ring.
Technical data
Device data:
• Activation by a rotating magnet on the machine PTO stub
• Inductive sensor
• Sensor cable length 2m
• Metal housing
• Protection class IP54
• Permanently active LCD display
• Operating hours display in hours and minutes
• Six-digit display with 8 mm high digits
• Power supply via supplied 1/2 AA battery 3.6 V
• Battery life approx. 3 years
• Dimensions incl. mounting bracket: 130 x 70 x 55 mm (W x H x D)
• Weight incl. accessories 600 g
• Inductive sensor
• Sensor cable length 2m
• Metal housing
• Protection class IP54
• Permanently active LCD display
• Operating hours display in hours and minutes
• Six-digit display with 8 mm high digits
• Power supply via supplied 1/2 AA battery 3.6 V
• Battery life approx. 3 years
• Dimensions incl. mounting bracket: 130 x 70 x 55 mm (W x H x D)
• Weight incl. accessories 600 g
Scope of delivery
Scope of delivery:
• 1 hour counter with sensor and battery
• 1 mounting bracket
• 1 sensor mounting clip
• 1 sender ring with magnet
• 1 instruction manual
• 1 mounting bracket
• 1 sensor mounting clip
• 1 sender ring with magnet
• 1 instruction manual
FAQ
Where is the counter mounted?
The counting unit should be mounted on a robust, protected part of the machine frame that is clearly visible for reading the display.
How is the counter installed?
The counter is already mounted on a bracket. Fix this bracket to your machine using at least 2 M5 screws.
Where is the sensor mounted?
The sensor is mounted near the PTO stub using its holder. The sender ring is pushed onto the shaft and secured.
How fast must the shaft or trigger magnet rotate for counting to start?
Counting starts when the speed exceeds 100 revolutions per minute.
Is the counter tamper-proof?
No, a sensor-based counter cannot generally be considered tamper-proof, as the sensor can be easily disabled. In addition, the housing can be opened and the battery removed.
How long does the battery last?
Depending on operating conditions, the supplied battery lasts approx. 3 years.
Can the battery be replaced?
Yes, the counter must be removed, the housing opened and the battery replaced.
Can the counter be reset to "0"?
No, this is not possible.
Further questions?
Do you have any questions or need support choosing the right product? Call us on +43 2846 620 – at Agris GmbH you will speak directly with experienced specialists who will be happy to assist you competently.
