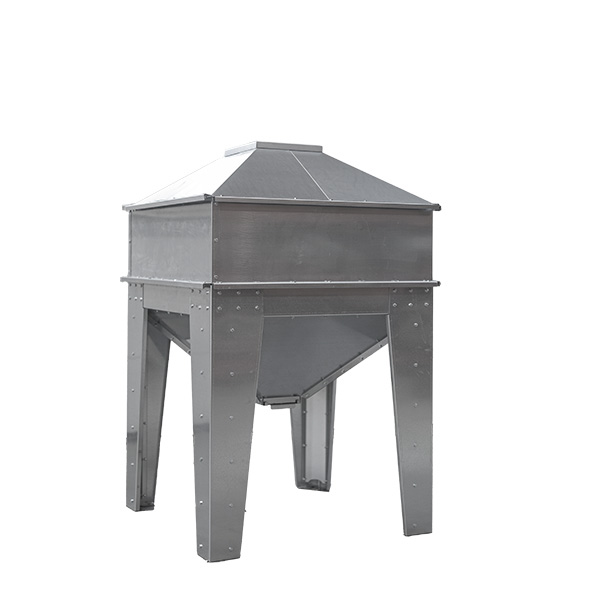

Silo CSI1 with 1 Extension and Lid
Art. No. CSI11D
Modular Silo consisting of a base structure with 4 feet, hopper, and discharge slide, as well as one extension module and lid • Capacity approx. 1.1 m3 • Galvanized steel sheet • Ideal for all free-flowing bulk goods such as: grain, animal feed, pellets, granules • Delivered disassembled on a pallet • Made in Austria
Product Description
Flexible Silo Structure for Customized Storage Needs
The Silo CSI1 stands out with its modular design, offering maximum flexibility. Adjust the capacity with up to five extensions and a lid – providing a storage capacity of up to 3.6 m³.
Robust Construction from Galvanized Steel
Made from high-quality galvanized steel sheet, the silo is corrosion-resistant and durable. With a maximum load capacity of 3,000 kg, it offers a reliable solution for demanding agricultural applications.
Space-Saving Design for Indoor Use
The square design of the silo with a side length of just 123 cm ensures optimal space utilization. This compact design makes the silo especially suitable for indoor spaces with limited room.
Silo Feet Prepared for Integration of Weighing Technology
The silo feet are prepared for the installation of weighing technology. With the retrofittable scale, you can always have an accurate overview of your silo’s fill level.
Technical Specifications
Silo Base Module:
• all parts made from galvanized steel sheet
• 4 stand feet with attachment option to the ground
• prepared for the installation of weighing technology
• discharge hopper made of 4 side panels
• hopper wall inclination 45 degrees
• discharge slide with opening up to 16 x 18 cm
• ground clearance 59 cm (without weighing technology)
• fill volume 0.35 m3
• dimensions 123 x 123 x 121 cm (LxWxH)
• weight approx. 93 kg
• 4 stand feet with attachment option to the ground
• prepared for the installation of weighing technology
• discharge hopper made of 4 side panels
• hopper wall inclination 45 degrees
• discharge slide with opening up to 16 x 18 cm
• ground clearance 59 cm (without weighing technology)
• fill volume 0.35 m3
• dimensions 123 x 123 x 121 cm (LxWxH)
• weight approx. 93 kg
Silo Extension Frame:
• all parts made from galvanized steel sheet
• 4 side panels
• fill volume 0.5 m3
• height 38 cm
• weight approx. 26 kg
• 4 side panels
• fill volume 0.5 m3
• height 38 cm
• weight approx. 26 kg
Silo Lid:
• all parts made from galvanized steel sheet
• conical top part made of 4 elements
• tool-free removable center part as a lid
• filling opening 36 x 36 cm
• fill volume 0.25 m3
• height 40 cm
• weight approx. 21 kg
• conical top part made of 4 elements
• tool-free removable center part as a lid
• filling opening 36 x 36 cm
• fill volume 0.25 m3
• height 40 cm
• weight approx. 21 kg
Total Height (without weighing technology) and Fill Volume:
• base module: height 1.21 m, volume 0.35 m3
• with 1 extension: height 1.59 m, volume 0.85 m3
• with 2 extensions: height 1.97 m, volume 1.35 m3
• with 3 extensions: height 2.35 m, volume 1.85 m3
• with 4 extensions: height 2.72 m, volume 2.35 m3
• with 5 extensions: height 3.11 m, volume 2.85 m3
• with 6 extensions: height 3.49 m, volume 3.35 m3
• lid: additional height 0.34 m, additional volume 0.25 m3
• with 1 extension: height 1.59 m, volume 0.85 m3
• with 2 extensions: height 1.97 m, volume 1.35 m3
• with 3 extensions: height 2.35 m, volume 1.85 m3
• with 4 extensions: height 2.72 m, volume 2.35 m3
• with 5 extensions: height 3.11 m, volume 2.85 m3
• with 6 extensions: height 3.49 m, volume 3.35 m3
• lid: additional height 0.34 m, additional volume 0.25 m3
Scope of Delivery
Scope of Delivery:
• 1 silo base module with 4 feet and hopper with discharge
• 1 extension frame
• 1 lid
• 1 manual
• delivered in disassembled state on a pallet
• 1 extension frame
• 1 lid
• 1 manual
• delivered in disassembled state on a pallet
FAQ
Any Further Questions?
We are happy to answer any further questions by phone at +43 2846 620.
