Silo CSI1 Base Module with Lid
Art. No. CSI10D
Base module for Grain Silo • Base frame with 4 feet, hopper, and discharge slide • Cover with filling opening • Galvanized steel sheet • Ideal for all free-flowing bulk materials, such as grain, animal feed, pellets, granules • Delivered disassembled on a pallet • Made in Austria
Product Description
Flexible Silo Structure for Custom Storage Needs
The Silo CSI1 impresses with its modular design, offering maximum flexibility. Adjust the capacity with up to six extensions and a lid to meet your requirements – for a storage capacity of up to 3.6 m³.
Robust Construction from Galvanized Steel
Made from high-quality galvanized steel, the silo is corrosion-resistant and durable. With a maximum load capacity of 3,000 kg, it offers a reliable solution for demanding agricultural applications.
Space-Saving Design for Indoor Use
The square design with a side length of only 123 cm ensures optimal space usage. This compact design makes the silo particularly suitable for indoor areas with limited space.
Prepared for Integration of Weighing Technology
The feet are prepared for the installation of weighing technology. With the retrofittable scale, you always have an accurate overview of the silo’s fill level.
Technical Specifications
Silo Base Module:
• All parts made from galvanized steel sheet
• 4 stand feet with attachment option to the ground
• Prepared for the installation of weighing technology
• Discharge hopper made of 4 side panels
• Hopper wall inclination 45 degrees
• Discharge slide with opening up to 16 x 18 cm
• Ground clearance 59 cm (without weighing technology)
• Fill volume 0.35 m3
• Dimensions 123 x 123 x 121 cm (LxWxH)
• Weight approx. 93 kg
• 4 stand feet with attachment option to the ground
• Prepared for the installation of weighing technology
• Discharge hopper made of 4 side panels
• Hopper wall inclination 45 degrees
• Discharge slide with opening up to 16 x 18 cm
• Ground clearance 59 cm (without weighing technology)
• Fill volume 0.35 m3
• Dimensions 123 x 123 x 121 cm (LxWxH)
• Weight approx. 93 kg

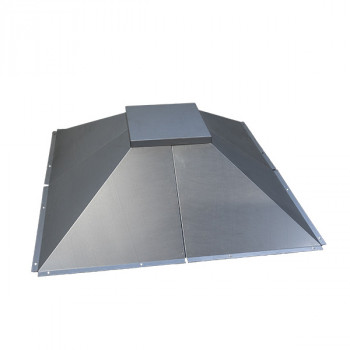

Silo Lid:
• All parts made from galvanized steel sheet
• Conical top part made of 4 elements
• Tool-free removable center part as lid
• Filling opening 36 x 36 cm
• Fill volume 0.25 m3
• Height 40 cm
• Weight approx. 21 kg
• Conical top part made of 4 elements
• Tool-free removable center part as lid
• Filling opening 36 x 36 cm
• Fill volume 0.25 m3
• Height 40 cm
• Weight approx. 21 kg
Total Height (without weighing technology) and Fill Volume:
• Base module: Height 1.21 m, Volume 0.35 m3
• With 1 extension: Height 1.59 m, Volume 0.85 m3
• With 2 extensions: Height 1.97 m, Volume 1.35 m3
• With 3 extensions: Height 2.35 m, Volume 1.85 m3
• With 4 extensions: Height 2.72 m, Volume 2.35 m3
• With 5 extensions: Height 3.11 m, Volume 2.85 m3
• With 6 extensions: Height 3.49 m, Volume 3.35 m3
• Lid: Additional height 0.34 m, Additional volume 0.25 m3
• With 1 extension: Height 1.59 m, Volume 0.85 m3
• With 2 extensions: Height 1.97 m, Volume 1.35 m3
• With 3 extensions: Height 2.35 m, Volume 1.85 m3
• With 4 extensions: Height 2.72 m, Volume 2.35 m3
• With 5 extensions: Height 3.11 m, Volume 2.85 m3
• With 6 extensions: Height 3.49 m, Volume 3.35 m3
• Lid: Additional height 0.34 m, Additional volume 0.25 m3
Scope of Delivery
Scope of Delivery:
• 1 silo base module with 4 feet and hopper with discharge
• 1 manual
• Delivered in disassembled state on a pallet
• 1 manual
• Delivered in disassembled state on a pallet
FAQ
Any Further Questions?
We are happy to answer any further questions by phone at +43 2846 620.
