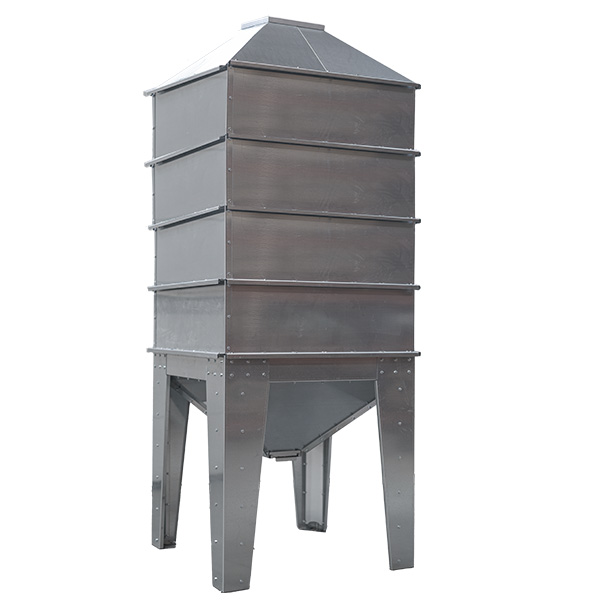

Grain Silo with 4 Extensions and Lid

€ 2.004,00

incl. 20 % VAT excl. shipping costs

delivery time 1 week

Art. No. CSI14D

0.0 of 5 stars

Modular Grain Silo consisting of a base structure with 4 feet, hopper, and discharge slide, as well as four extension modules and lid • Capacity approx. 2.6 m3 • Galvanized steel sheet • Ideal for all types of grain and other free-flowing crops • Delivered disassembled on a pallet • Made in Austria

Flexible Silo Structure for Custom Storage Needs

The Grain Silo CSI1 offers maximum flexibility with its modular design. With up to six extensions and a lid, you can adjust the capacity individually – ideal for a storage capacity of up to 3.6 m³ per silo.

Robust Construction from Galvanized Steel

Made from high-quality galvanized steel sheet, this grain silo provides a reliable and durable solution for grain storage. With a maximum load capacity of 3,000 kg, it is perfect for demanding applications, protecting your grain storage from weather and corrosion.

Space-Saving Design for Efficient Grain Storage

Thanks to its square design with a side length of only 123 cm, the grain silo optimally utilizes the available space. This compact design makes it the ideal choice for grain storage in indoor areas with limited space.

Optimized for Use with Weighing Technology

The silo feet are designed for the integration of weighing technology. With the retrofittable scale, you can always keep track of the fill level of your grain silo.

Technical Specifications

Silo Base Module:

• all parts made from galvanized steel sheet
• 4 stand feet with attachment option to the ground
• prepared for the installation of weighing technology
• discharge hopper made of 4 side panels
• hopper wall inclination 45 degrees
• discharge slide with opening up to 16 x 18 cm
• ground clearance 59 cm (without weighing technology)
• fill volume 0.35 m3
• dimensions 123 x 123 x 121 cm (LxWxH)
• weight approx. 93 kg

Silo Extension Frame:

• all parts made from galvanized steel sheet
• 4 side panels
• fill volume 0.5 m3
• height 38 cm
• weight approx. 26 kg

Silo Lid:

• all parts made from galvanized steel sheet
• conical top part made of 4 elements
• tool-free removable center part as a lid
• filling opening 36 x 36 cm
• fill volume 0.25 m3
• height 40 cm
• weight approx. 21 kg

Total Height (without weighing technology) and Fill Volume:

• base module: height 1.21 m, volume 0.35 m3
• with 1 extension: height 1.59 m, volume 0.85 m3
• with 2 extensions: height 1.97 m, volume 1.35 m3
• with 3 extensions: height 2.35 m, volume 1.85 m3
• with 4 extensions: height 2.72 m, volume 2.35 m3
• with 5 extensions: height 3.11 m, volume 2.85 m3
• with 6 extensions: height 3.49 m, volume 3.35 m3
• lid: additional height 0.34 m, additional volume 0.25 m3

Scope of Delivery

Scope of Delivery:

• 1 silo base module with 4 feet and hopper with discharge
• 4 extension frames
• 1 lid
• 1 manual
• delivered in disassembled state on a pallet
